12~288 Cores Singlemode G652D GCYFTY Duct Micro Air Blown Fiber Optic Cable

Name: 12288 Cores Singlemode G652D GCYFTY Duct Micro Air Blown Fiber Optic Cable
Brand: OEM/ODM
Price: 0.04 USD

China 12~288 Cores Singlemode G652D GCYFTY Duct Micro Air Blown Fiber Optic Cable wholesale

Model Number : Air Blown Fiber Optic Cable

Place of Origin : China

Brand Name : OEM/ODM

Certification : RoHS

Packaging Details : 2,4,6 KM/ Drum

Supply Ability : 100000 Kilometer/Kilometers per Day

MOQ : 1000 meters

Price : $0.04 - $0.50/meters

Payment Terms : T/T, Western Union

Type : Optical Fibers

Use : FTTP

Product name : GCYFTY Duct Micro Air Blown Fiber Optic Cable

Fiber count : 12~288 cores

Fiber Type : single mode(G652D)

Diameter : 5.2~9.4 mm

Jacket color : Black or customize

Material : HDPE

Operating temperature : -40℃- +70℃

Warranty : 25 years

Application : FTTX , outdoor

No. of Fiber : 12~288

Contact Now

GCYFTY Duct Micro Air Blown Fiber Optic Cable

Description

Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.

We are a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Applications

Long-distance communication,LAN

Used for air-blown laying in micro-tube

Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Specially designed compact structure is good at preventing loose tubes from shrinking

Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
Gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance

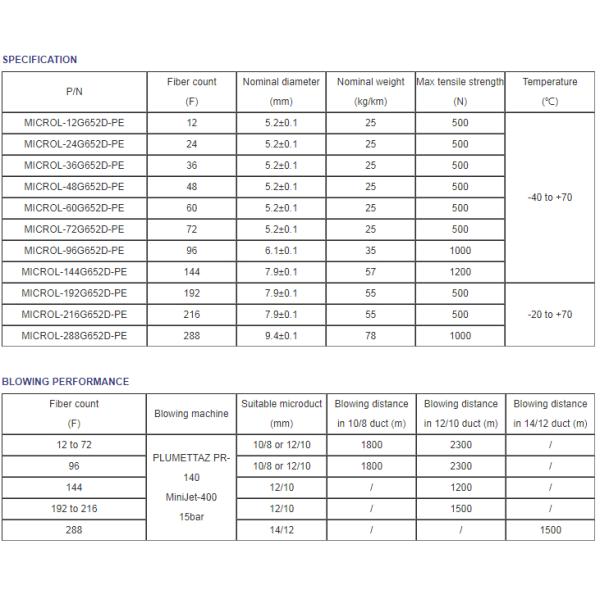

Cable parameters

12~288 Cores Singlemode G652D GCYFTY Duct Micro Air Blown Fiber Optic Cable

test equipment	the blowing distance for corresponding cable in different micro duct
PRM-196 , PR140 atmospheric pressure:13bar	fiber count	micro duct type	micro duct type
	fiber count	3.5/5.0	5.5/7.0mm
	2~12 core	blowing 800m	blowing 1500m
	14~24 core	blowing 500m	blowing 1500m

type	GCYFXY-**F(MTE +diameter)
fiber type	MTE1.8	MTE1.8	MTE2.0	MTE2.3	MTE2.8
fiber type	2~4	2~4	6~12	2~12	14~24
HDPEjacket thickness	standard :0.2mm min:0.15mm
standard diamete	1.8mm	2.0mm	2.3mm	2.5mm	2.8mm
a.p. weight	2.6kg/km	4.0kg/km	5.0km/km	6.0kg/km	7.0kg/km
fiber attenuation (singlemode)	1310nm/1550nm≤0.35/0.22dB/km
Max tensile	40N	40N	50N	60N	60N
max crunch	600N/100mm
allowable min static / dynamic radious diameter	10times/20 times cable diameter
adapt tem	storage -30~+60℃; operation -10~+40℃; work -20~+50℃
cable life time (appoximate)	25 years
